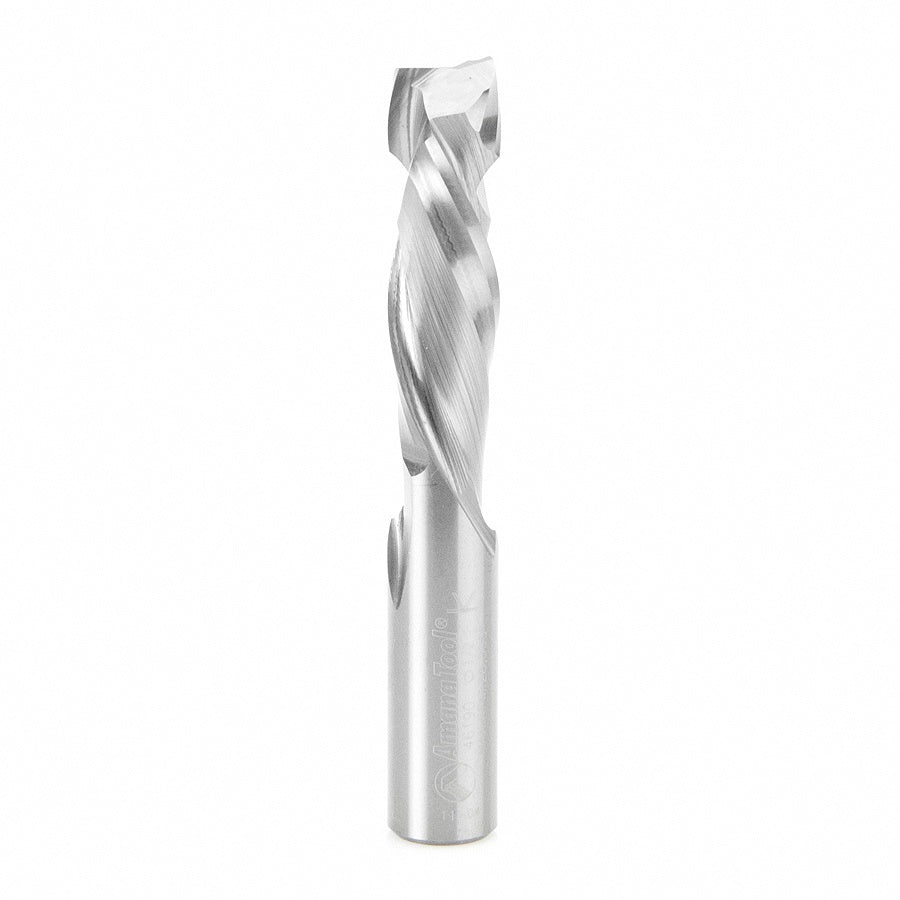

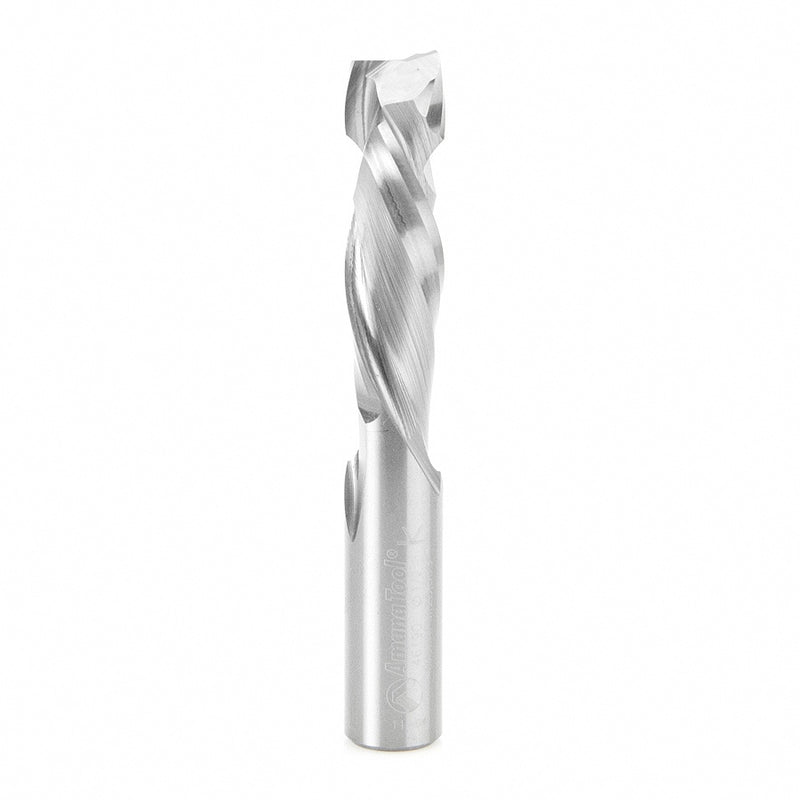

AMANA 46190 CNC Solid Carbide Compression Spiral 1/2 Dia x 1-5/8 x 1/2 Inch Shank
✅ In stock — FREE SHIPPING
The Amana Tool 46190 CNC Solid Carbide Compression Spiral Router Bit is the high-production CNC bit for tear-free, clean finishes on both sides of double-sided melamine, laminated plywood, and abrasive materials. The up/down compression spiral design with special unique carbide grade pulls chips away from the surface while delivering extended tool life in tough laminates. 1/2" diameter, 1-5/8" cutting height, 1/2" shank, and 3-1/2" overall len...
View More Details
Easy Return In Store
Contact our customer service team within 7 days of receiving your order to request a return authorization. Contact us for details or read the full policy.
Read Return PolicyAMANA 46190 CNC Solid Carbide Compression Spiral 1/2 Dia x 1-5/8 x 1/2 Inch Shank
The Amana Tool 46190 CNC Solid Carbide Compression Spiral Router Bit is the high-production CNC bit for tear-free, clean finishes on both sides of double-sided melamine, laminated plywood, and abrasive materials. The up/down compression spiral design with special unique carbide grade pulls chips away from the surface while delivering extended tool life in tough laminates. 1/2" diameter, 1-5/8" cutting height, 1/2" shank, and 3-1/2" overall length with 2 flutes provide efficient chip removal and high feed rates on CNC routers. Made in the USA—your essential for cabinetry, signage, and production work that demands superior edge quality without chipping.
• Compression spiral design – up-cut lower + down-cut upper for tear-free top/bottom edges
• Special unique carbide grade – longer lifetime in abrasive melamine & laminates
• 1/2" diameter x 1-5/8" cutting height – ideal for double-sided panels
• 1/2" shank x 3-1/2" overall length – fits most CNC routers
• 2-flute configuration – efficient chip removal & high feed rates
• Optimized for CNC applications – clean finishes at production speeds
• Excellent for melamine, laminated plywood & abrasive materials
• Made in USA – industrial-grade quality from Amana Tool
• FREE Shipping!
| D) Diameter | 1/2 |
|---|---|
| (B) Cutting Height | 1-5/8 |
| B1 | 13mm |
| (d) Shank | 1/2 |
| Overall Length (L) | 3-1/2 |
| Type | Solid Carbide |
| Flutes | 2 |
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
The Amana Tool 46190 CNC Solid Carbide Compression Spiral Router Bit is the high-production CNC bit for tear-free, clean finishes on both sides of double-sided melamine, laminated plywood, and abrasive materials. The up/down compression spiral design with special unique carbide grade pulls chips away from the surface while delivering extended tool life in tough laminates. 1/2" diameter, 1-5/8" cutting height, 1/2" shank, and 3-1/2" overall length with 2 flutes provide efficient chip removal and high feed rates on CNC routers. Made in the USA—your essential for cabinetry, signage, and production work that demands superior edge quality without chipping.
• Compression spiral design – up-cut lower + down-cut upper for tear-free top/bottom edges
• Special unique carbide grade – longer lifetime in abrasive melamine & laminates
• 1/2" diameter x 1-5/8" cutting height – ideal for double-sided panels
• 1/2" shank x 3-1/2" overall length – fits most CNC routers
• 2-flute configuration – efficient chip removal & high feed rates
• Optimized for CNC applications – clean finishes at production speeds
• Excellent for melamine, laminated plywood & abrasive materials
• Made in USA – industrial-grade quality from Amana Tool
• FREE Shipping!
| D) Diameter | 1/2 |
|---|---|
| (B) Cutting Height | 1-5/8 |
| B1 | 13mm |
| (d) Shank | 1/2 |
| Overall Length (L) | 3-1/2 |
| Type | Solid Carbide |
| Flutes | 2 |
| SKU | 46190 |
|---|---|
| Brand | AMANA |
