LAGUNA MBAND18BX2203 18|BX BANDSAW 3 HP 16" RESAW CAP, 220V
The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145″ (368 cm) blade for consistent results, cut-after-cut, regardless of wood material.
Features:
Motor: 3HP, 220V, 1 Ph. 12 Amp.
Recommended Breaker: 20 Amp.
Magnetic Starter
Min-Max Blade Width: 1/8″ – 1-1/4″
Resaw Capacity: 16″
Throat: 18″
Blade Length: 145″
Disc-Brake With Micro Switch
220V Outlet On Back For Light
Window For Tension
Window For Tracking
Magnetic Blade Tension Guide
Worm Gear & Pinion Upper Guide

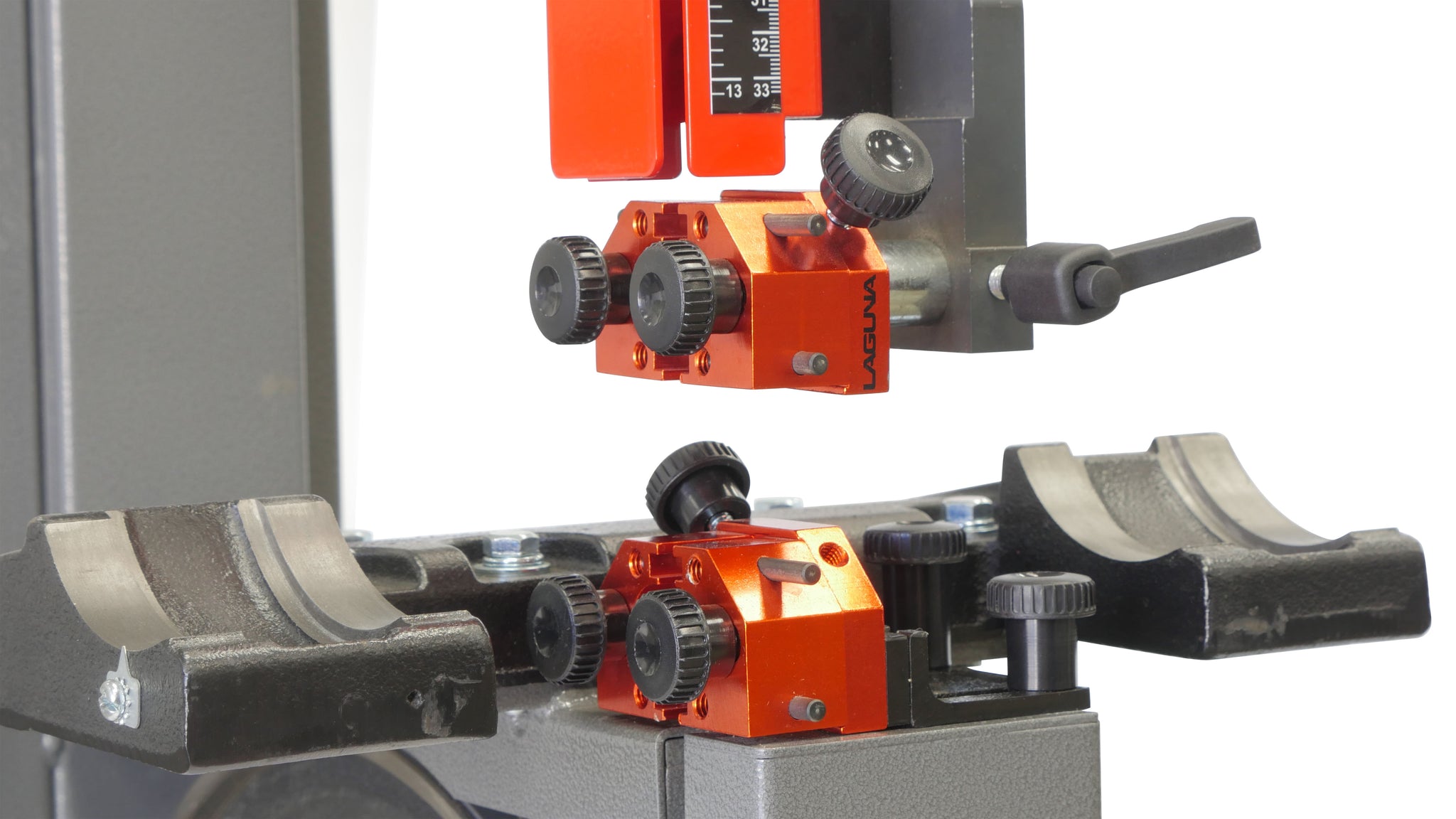

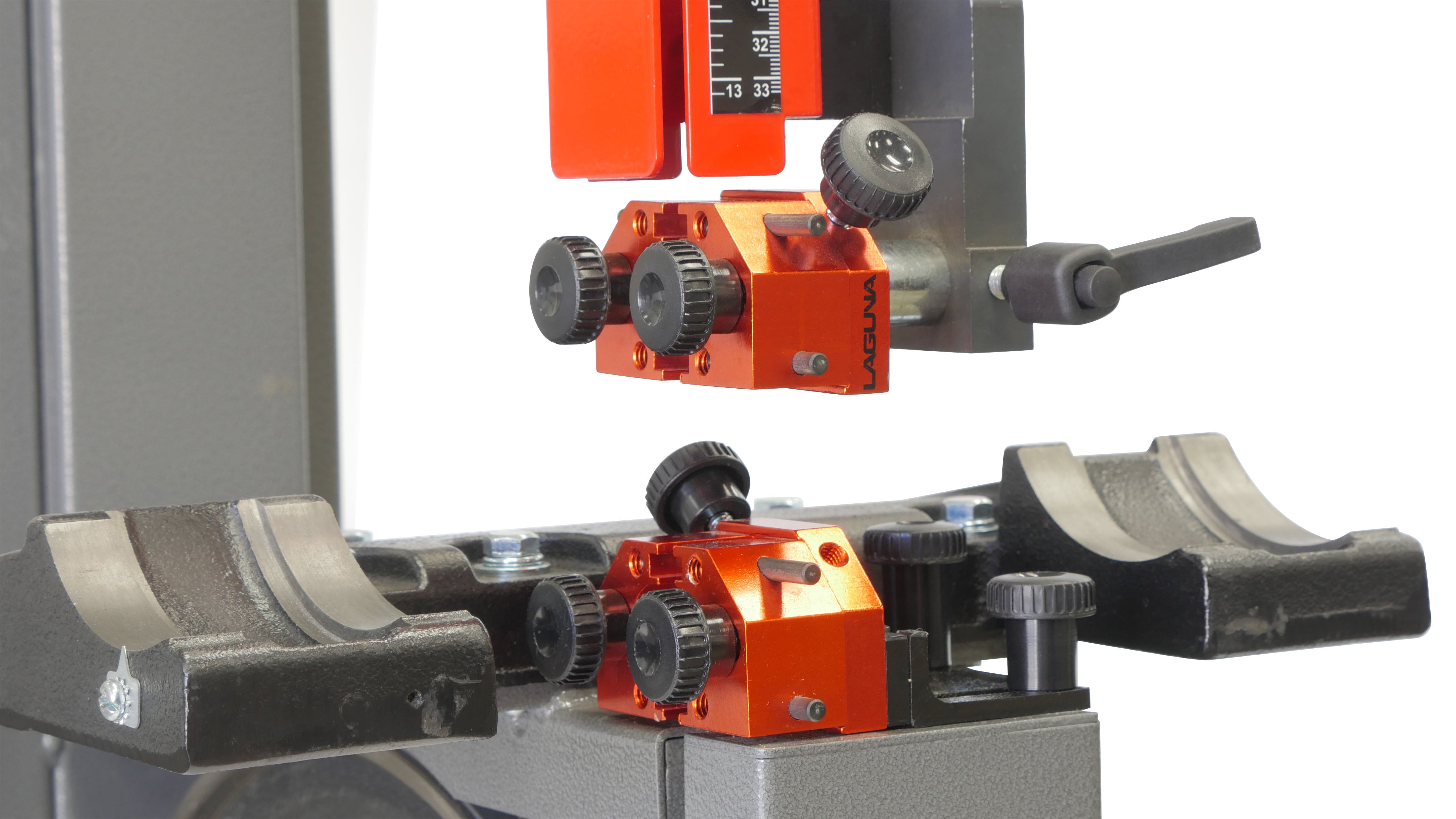

10 Point Laguna Ceramic Guides
Flat Poly-Groove Drive Belt
Premium Anodized Insert With Micro Adjustment
Dynamically Balanced Cast Iron Wheels
Urethane Single Piece Snap-On Tire
Cast Table Size: 20″ x 26″
Table Tilt: -6°, +45°
Cast Table Size: 20″ x 26″
Table Tilt: -6°, +45°
Quick-Release Tension
Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″
Table Height: 38″
Dust Ports: 4″ x 2
Overall Height: 77-¾″
Dimensions (Base): 27″ x 20″
Dimensions Overall: 36″ x 30″
Dimensions Box: 36″ x 84″ x 30″
Weight (Net/Ship): 410/460 lbs
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145″ (368 cm) blade for consistent results, cut-after-cut, regardless of wood material.
Features:
Motor: 3HP, 220V, 1 Ph. 12 Amp.
Recommended Breaker: 20 Amp.
Magnetic Starter
Min-Max Blade Width: 1/8″ – 1-1/4″
Resaw Capacity: 16″
Throat: 18″
Blade Length: 145″
Disc-Brake With Micro Switch
220V Outlet On Back For Light
Window For Tension
Window For Tracking
Magnetic Blade Tension Guide
Worm Gear & Pinion Upper Guide
10 Point Laguna Ceramic Guides
Flat Poly-Groove Drive Belt
Premium Anodized Insert With Micro Adjustment
Dynamically Balanced Cast Iron Wheels
Urethane Single Piece Snap-On Tire
Cast Table Size: 20″ x 26″
Table Tilt: -6°, +45°
Cast Table Size: 20″ x 26″
Table Tilt: -6°, +45°
Quick-Release Tension
Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″
Table Height: 38″
Dust Ports: 4″ x 2
Overall Height: 77-¾″
Dimensions (Base): 27″ x 20″
Dimensions Overall: 36″ x 30″
Dimensions Box: 36″ x 84″ x 30″
Weight (Net/Ship): 410/460 lbs
| SKU | LAGMBAND18BX2203 |
|---|---|
| Brand | LAGUNA |
