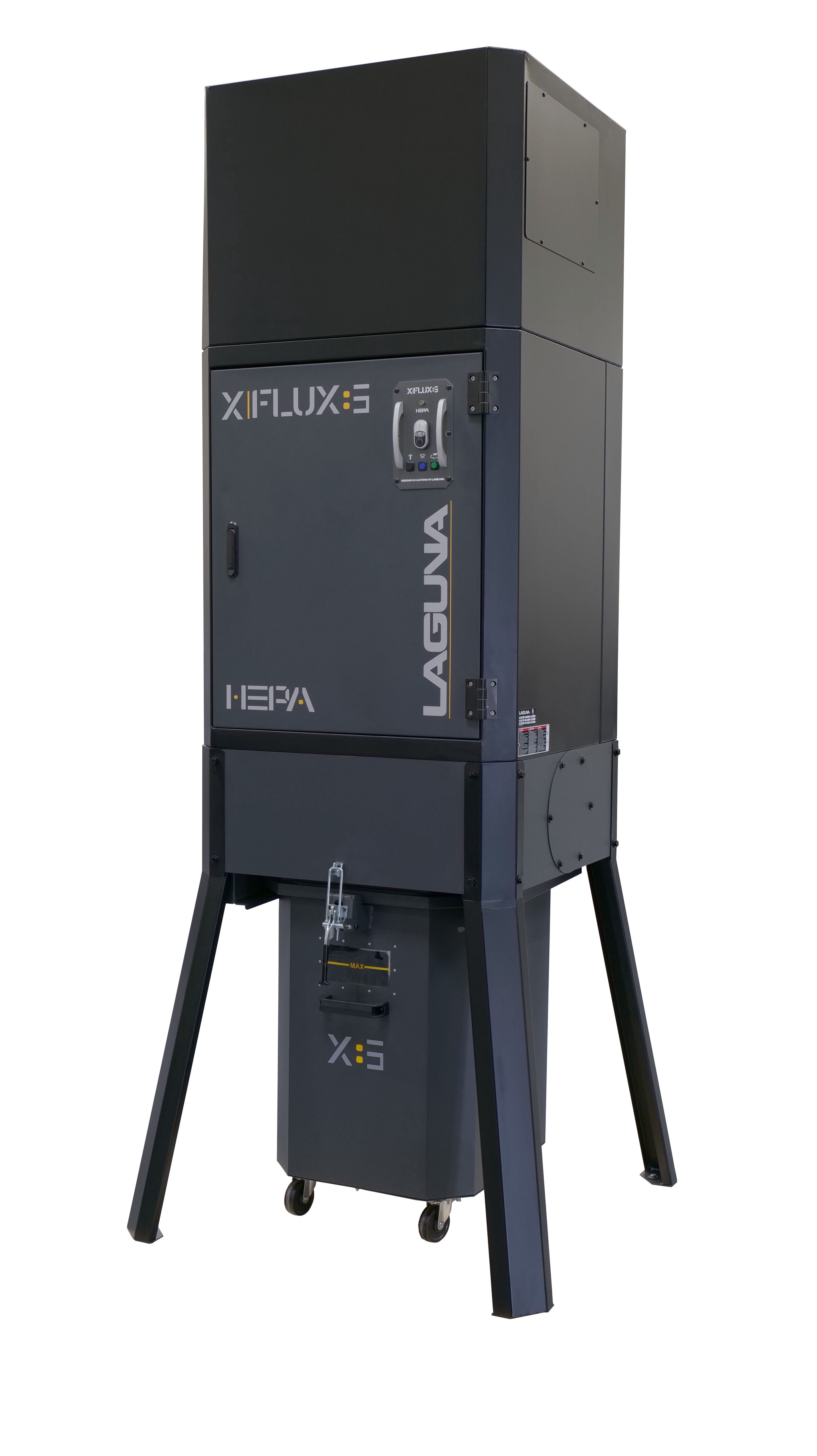

LAGUNA MDCXF52201 X|FLUX:5 5 HP (AUTO-CLEAN) CYCLONE DUST COLLECTOR, 220V
✅ In stock — Ships today
The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 1823 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with convenient 39 gallon drum on locking castors. Features:Motor HP: 5 HP1832CFM Of Air Flow3...
View More Details
Easy Return In Store
Contact our customer service team within 7 days of receiving your order to request a return authorization. Contact us for details or read the full policy.
Read Return PolicyLAGUNA MDCXF52201 X|FLUX:5 5 HP (AUTO-CLEAN) CYCLONE DUST COLLECTOR, 220V

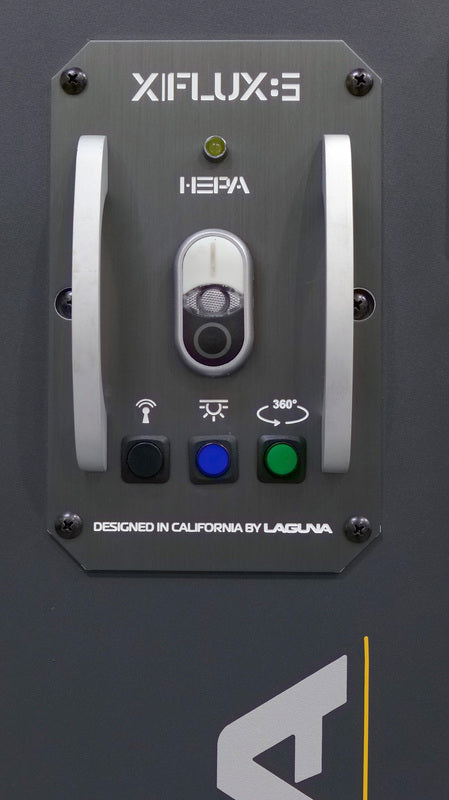

The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 1823 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with convenient 39 gallon drum on locking castors.
Features:
Motor HP: 5 HP
1832CFM Of Air Flow
39 Gallon Octagon Drum
Motor Specs: 5HP
Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
Running AMP: (8″ inlet) 18.5A at 220V
Air Volume: 1823CFM (Cubic Feet Per Minute)
Max Static Pressure: 12″
Fan Size: 14.5″
Inlet: 8″
Decibel Reading: 69 dBA (@9.8ft)
Remote Control: High Frequency
Collection Capacity: 39 Gallon Octagon Drum
Assembled Dimensions (L x W x H): 36″ x 38″ x 91″
Packing Size (L x W x H): 35.4″ x 28.3″ x 81.5″ (90 x 72 x 207 cm)
Machine Weight: 456 lbs. (207 kg)
Shipping Weight: 544 lbs. (247 kg)
Filter Specs
Filtering Area: 32.3 sq/ft (3 sq/m)
Cartridge Filter*: HEPA 19.7″ x 19.7″ (50 x 50 cm) x 1pc; (0.3 – 0.4 Micron @ 99.7% Efficiency)
*The non-stick PTFE membrane has some disintegration after 200,000 cycles at the area where the cleaning paddles/arms touch the filter media. This does not largely affect the filtration efficiency. The HEPA filter media used on Laguna Cyclones are independently tested by an accredited 3rd party (TTRI). Designed with wide-spaced pleating to maintain optimum performance throughout filter lifespan.
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 1823 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with convenient 39 gallon drum on locking castors.
Features:
Motor HP: 5 HP
1832CFM Of Air Flow
39 Gallon Octagon Drum
Motor Specs: 5HP
Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
Running AMP: (8″ inlet) 18.5A at 220V
Air Volume: 1823CFM (Cubic Feet Per Minute)
Max Static Pressure: 12″
Fan Size: 14.5″
Inlet: 8″
Decibel Reading: 69 dBA (@9.8ft)
Remote Control: High Frequency
Collection Capacity: 39 Gallon Octagon Drum
Assembled Dimensions (L x W x H): 36″ x 38″ x 91″
Packing Size (L x W x H): 35.4″ x 28.3″ x 81.5″ (90 x 72 x 207 cm)
Machine Weight: 456 lbs. (207 kg)
Shipping Weight: 544 lbs. (247 kg)
Filter Specs
Filtering Area: 32.3 sq/ft (3 sq/m)
Cartridge Filter*: HEPA 19.7″ x 19.7″ (50 x 50 cm) x 1pc; (0.3 – 0.4 Micron @ 99.7% Efficiency)
*The non-stick PTFE membrane has some disintegration after 200,000 cycles at the area where the cleaning paddles/arms touch the filter media. This does not largely affect the filtration efficiency. The HEPA filter media used on Laguna Cyclones are independently tested by an accredited 3rd party (TTRI). Designed with wide-spaced pleating to maintain optimum performance throughout filter lifespan.
| SKU | MDCXF52201 |
|---|---|
| Brand | LAGUNA |
