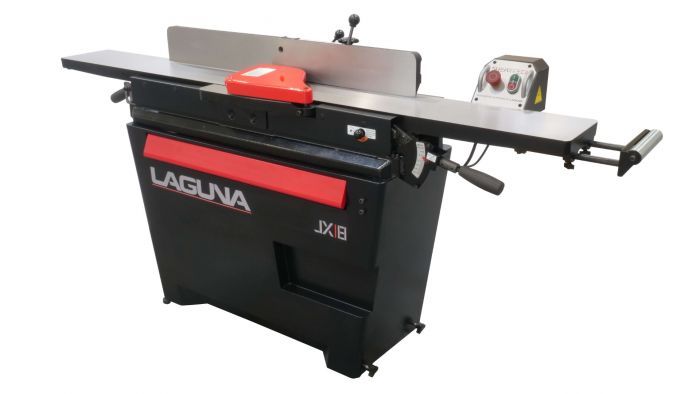

The Laguna JX|8 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 110 Volt 1.75 HP version.

Features:

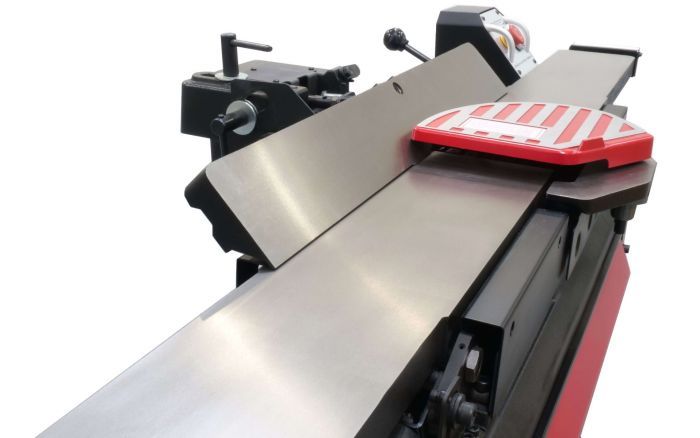

Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel

Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece

New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine

In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials

QuadTec I Cutterhead – The all-new QuadTec I cuttherhead comes as standard equipment on the new JX-8 QuadTec I The QuadTec I produces an amazing surface finish on all woods including difficult hardwoods. The QuadTec I uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

Built-In Wheels – No need to purchase a separate mobility kit
Cast-Iron Tables and Fence

Motor: 110V 1.75HP 1 Phase 60hz/15 Amp

CSA: Yes

Bed Size: 8″ x 72″

Infeed Table Pull-Out Extension: 8″

Rabbetting Capacity: 1/2″

Fence Size: 38″ x 4-¾″ Cast Iron

Fence Tilt: ±45/90°

Max. Depth Of Cut: 1/8″

Table Height From Floor: 31″

Safety Bar Shut-Off: Yes

Bracket To Mount Light: No

110V Outlet For Light: No

Bracket To Mount Feeder: No

Dust Port Diameter: 4″

Plug (NEMA 5-15P): Yes

Cutterhead Insert #: 20 x 4-Sided Carbide, 4-Row

Cutterhead RPM: 5500

Cutterhead Diameter: 3-1/8″

Bed Adjustment: Parallelogram

Dimensions Set Up (Approx): 75-1/2″ x 26-1/2″

Base Footprint Dimensions: 32-1/2″ x 15-1/4″

Shipping Dimensions:

40″ x 18″ x 26″ – 139 Lbs.
82″ x 25″ x 17″ – 319 Lbs.
(Two Boxes)
