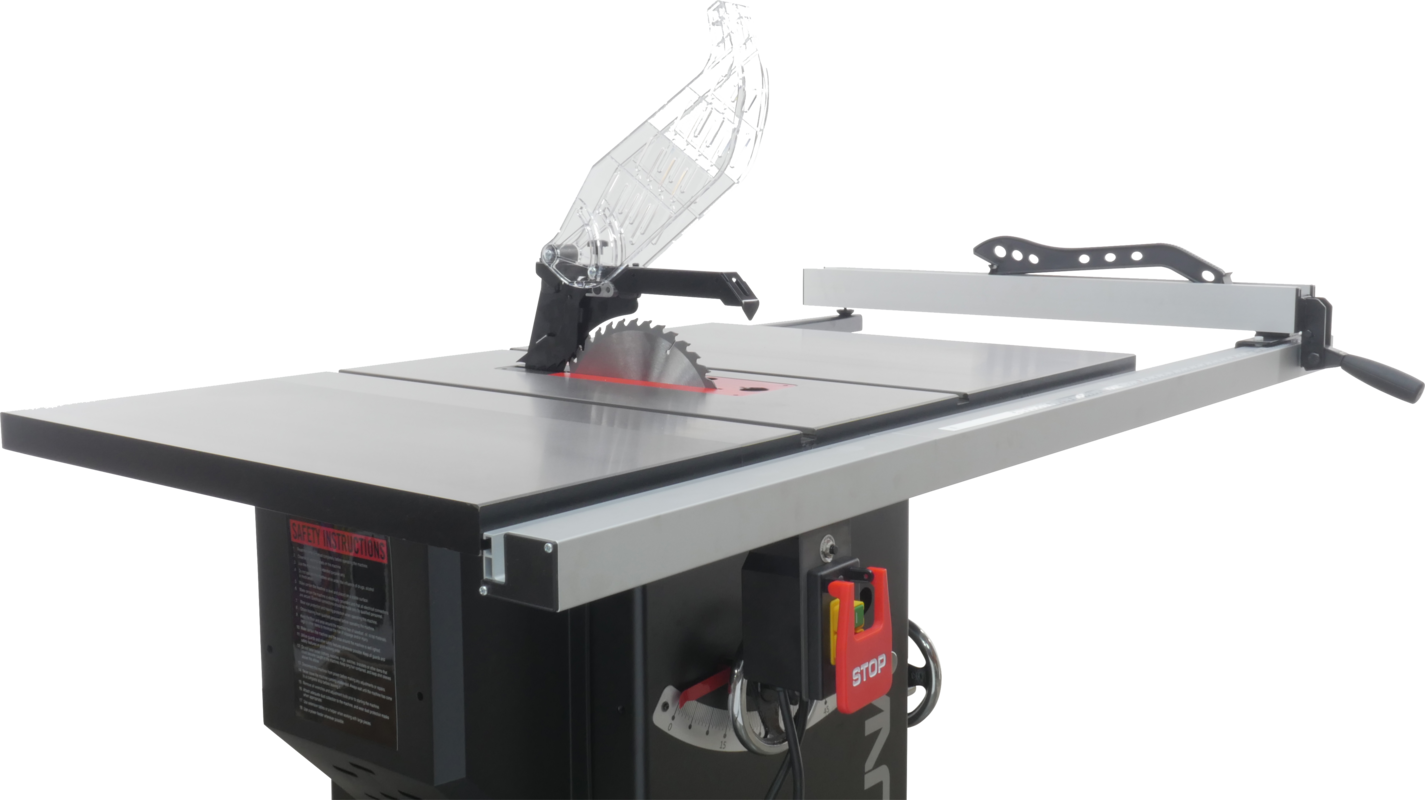

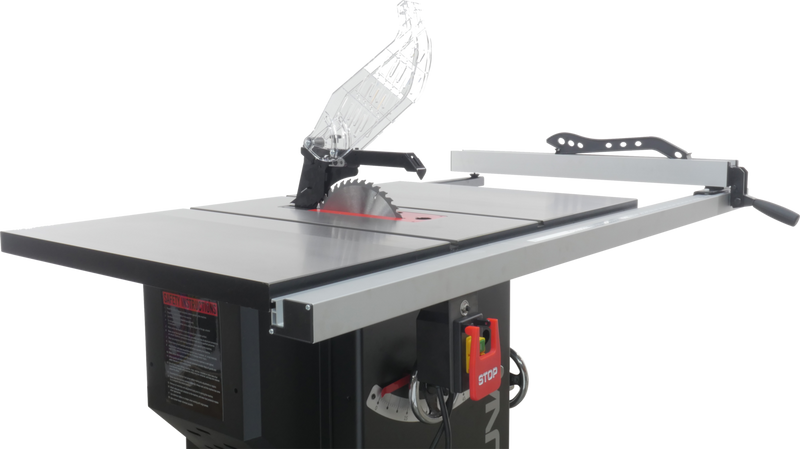

LAGUNA MTSF236110175-0130 FUSION 2 1-3/4 HP 10" TABLE SAW, 30", 110V
The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.
All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.
Features:
1.75HP TEFC Motor
110V, Single-Phase, 60Hz Power Requirement
Fusion Dust Collection System
Cabinet Mounted Design
Included Tools & Integrated Tool Storage
Included 10 x 40T Carbide-Tipped Blade
Full Cabinet Body
Trunion Mounted To Body Not Table
Cast Iron Table & Wings
European Hi-Lo Fence

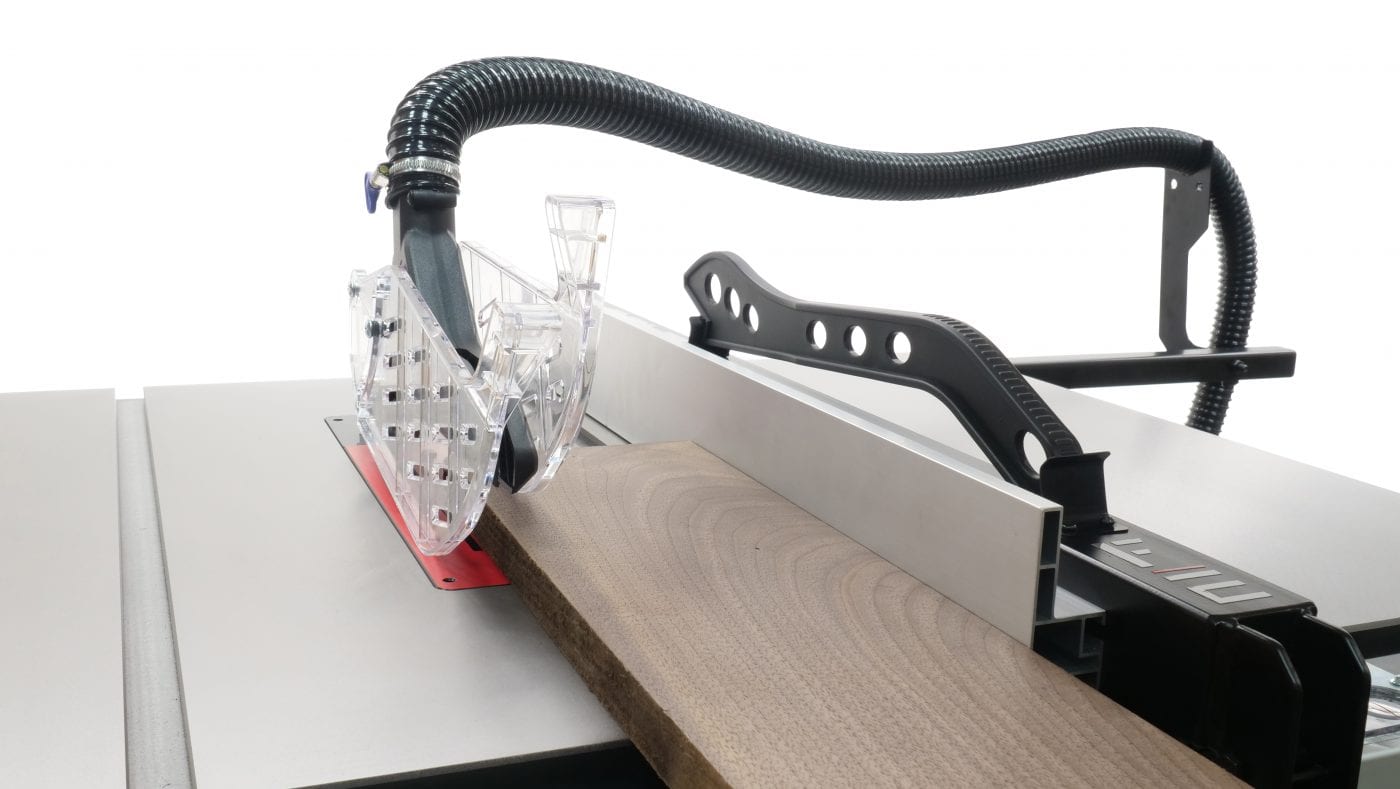

Overhead Dust Collection
Quick-Release Blade Guard & Splitter
Riving Knife Included
Fence Mounted Push Stick
Miter Gauge Included
Tool less Blade Lock
Integrated Tool Storage
Polished Handles
10 x 40T Blade Included
Premium Arbor & Motor Bearings
Mobility Built Into Cabinet
Features:
Digital Readout
Laguna has added DRO for the tilt on the Fusion F2 & F3 as standard equipment

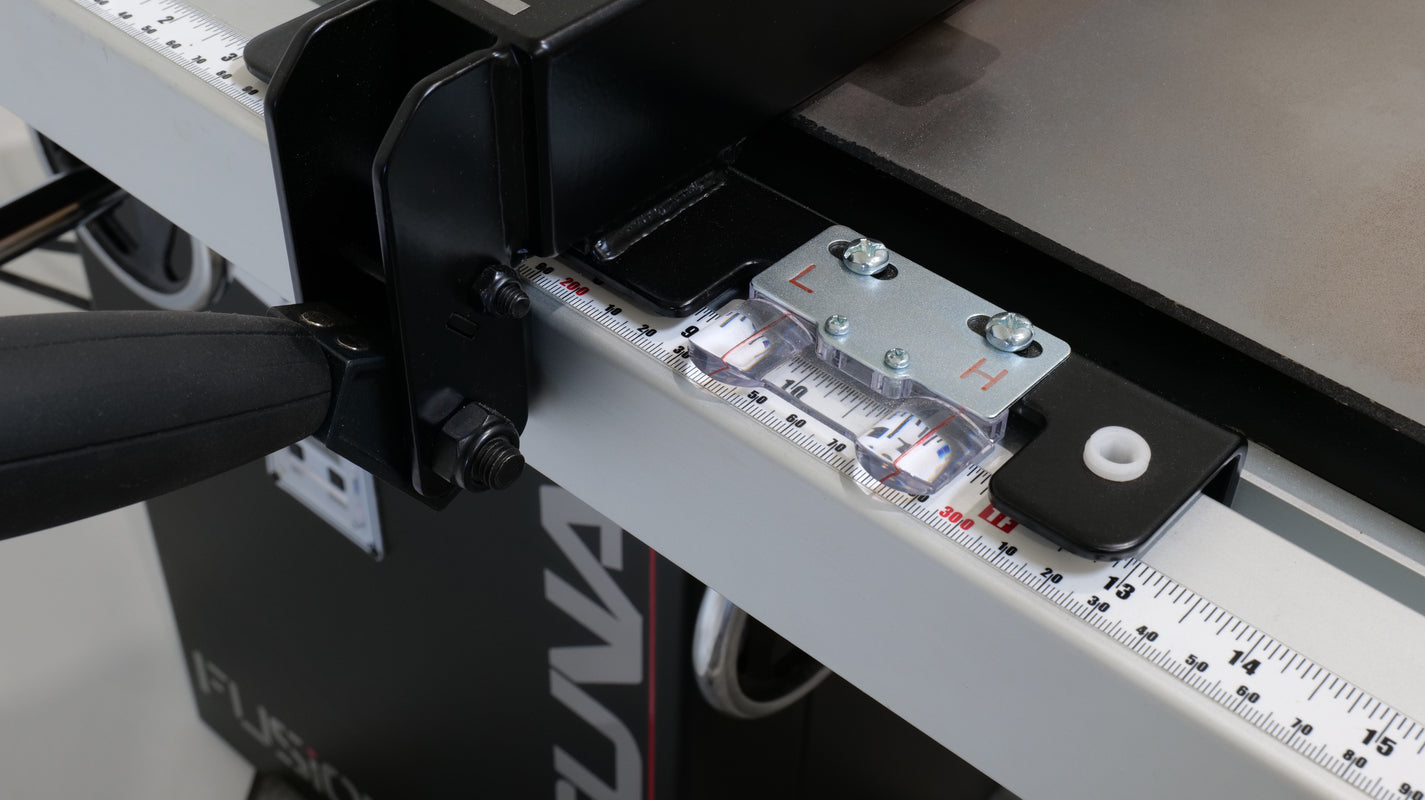

European Hi/Low Fence
The Rip fence on Fusion F2 & F3 now features a Hi/Low window to work with the European style Hi/Low fence.
Optional 220V Upgrade
Contact Laguna Service For Details
On-Board Tool Storage
Have your rip fence and other Fusion accessories out of the way but easily accessible
Specs:
Dust Port Size: 4 in.
Blade Guard Dust Port Size: 1-½″
Table Saw Type: Cabinet
Maximum Blade Diameter: 10″
Arbor Size: ⅝″
Arbor Speed: 4500 RPM
Maximum Width Of Dado: ¾″
Blade Tilt Direction: Left
Max Blade Tilt: 45°
Maximum Depth Of Cut At 90°: 3-⅛″
Maximum Depth Of Cut At 45°: 2-⅛″
Max Rip Right Of Blade With Included Fence & Rails: 37″ *
* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
Motor
1/8 HP, 120V, 0.6A
The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.
All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.
Features:
1.75HP TEFC Motor
110V, Single-Phase, 60Hz Power Requirement
Fusion Dust Collection System
Cabinet Mounted Design
Included Tools & Integrated Tool Storage
Included 10 x 40T Carbide-Tipped Blade
Full Cabinet Body
Trunion Mounted To Body Not Table
Cast Iron Table & Wings
European Hi-Lo Fence
Overhead Dust Collection
Quick-Release Blade Guard & Splitter
Riving Knife Included
Fence Mounted Push Stick
Miter Gauge Included
Tool less Blade Lock
Integrated Tool Storage
Polished Handles
10 x 40T Blade Included
Premium Arbor & Motor Bearings
Mobility Built Into Cabinet
Features:
Digital Readout
Laguna has added DRO for the tilt on the Fusion F2 & F3 as standard equipment
European Hi/Low Fence
The Rip fence on Fusion F2 & F3 now features a Hi/Low window to work with the European style Hi/Low fence.
Optional 220V Upgrade
Contact Laguna Service For Details
On-Board Tool Storage
Have your rip fence and other Fusion accessories out of the way but easily accessible
Specs:
Dust Port Size: 4 in.
Blade Guard Dust Port Size: 1-½″
Table Saw Type: Cabinet
Maximum Blade Diameter: 10″
Arbor Size: ⅝″
Arbor Speed: 4500 RPM
Maximum Width Of Dado: ¾″
Blade Tilt Direction: Left
Max Blade Tilt: 45°
Maximum Depth Of Cut At 90°: 3-⅛″
Maximum Depth Of Cut At 45°: 2-⅛″
Max Rip Right Of Blade With Included Fence & Rails: 37″ *
* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
